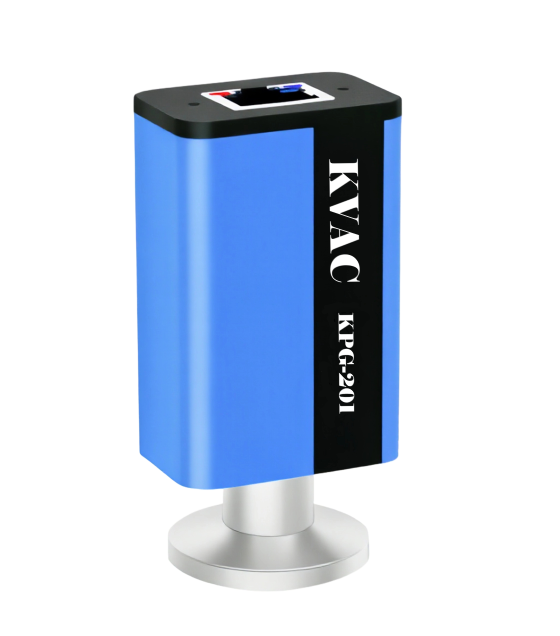

The measurement range of the KPG-201 vacuum gauge is 5.0×10-2 ~ 1×105 Pa. It operates based on the principle of heat conduction, where the heat loss rate of the heating filament depends on the pressure of the gas surrounding it. The measured values of the vacuum gauge are output as corresponding analog signals through the RJ45 connector.
| Range | 5.0×10⁻² ~ 1×10⁵ Pa（Air, oxygen, nitrogen oxide, nitrogen gas） |
| Tolerance | 1×10⁴~1×10⁵ Pa ±50% 1×10⁻¹~1×10⁴ Pa ±15% 5×10⁻²~1×10⁻¹ Pa ±50% |
| Repeatable | 1×10⁻¹~1×10⁴ Pa ±2% |
| Simulation output range | 0~10.3 VDC |
| Effective output range | 1.9~10 VDC |
| Relay setting range | 2.67~9.61 VDC |
| Voltage and pressure | 1.286 V/dec |
| Error signal | 0~0.5 V |
| Filament breakage | 0.1V |
| Simulated output impedance | 2×4.7Ω |
| Minimum output impedance load | 10kΩ，Short-circuit prevention output |
| Measurement and Identification | 27kΩ |
| Voltage | 14~30 VDC |
| Power | ≤1Watt |
| Maximum pressure | 10 Bar |
| Working temperature | 5~60℃ |
| Storage temperature | -20~65℃ |
| Inlet protection level | IP40 |
